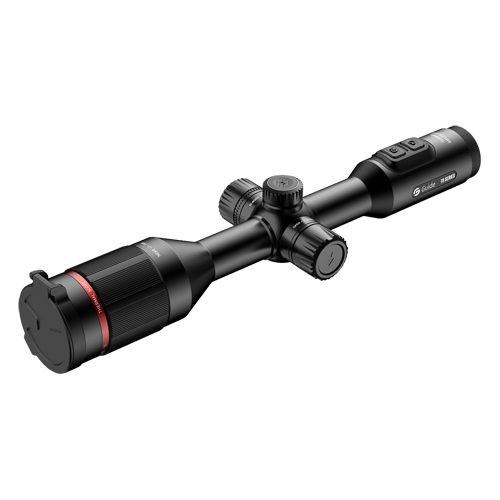

Thermal imaging riflescope Guide TU420

The thermal imaging riflescopes of the Guide TU series integrate the latest high-end thermal imaging technology and at the same time enable simple and intuitive operation. The riflescopes are equipped with a highly sensitive 400x300 @ 17μm, VOx thermal detector, ideal for shooting with extreme precision at medium and long distances with optimal visibility even in fog and rain. Up to 10 zero calibration settings can be saved in the form of weapon profiles.

The riflescope offers a picture-in-picture option and six different color displays. Photos and videos can be saved in the internal 16GB memory and transferred via HDMI or USB-C. The device also enables live transmission via WLAN to up to 4 participants.

• Optical zoom: 1.6x - 6.4x
• Digital zoom: 1x - 4x
• Objective lens: 25mm
• Field of view: 15.49 ° × 11.65 °
• Sensor: 400x300 @ 17μm
• Screen resolution: 1024 × 768
• Frame rate: 50Hz
• Protection class: IP67 (waterproof, dustproof and shockproof)
• Operating temperature - 30 ° C ~ + 50 ° C
• Rechargeable internal battery + external battery
• Battery life: up to 10 hours
• Dimensions: 67 × 107 × 69 mm
• Weight: 930g
