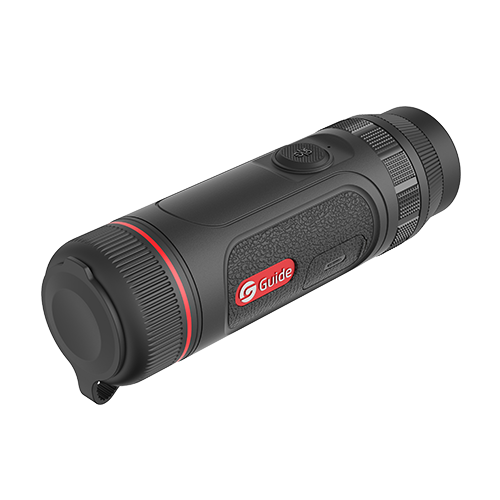

GUIDE Thermal imaging device TE 421

TE Series – Thermal Imaging Monocular
The TE Series portable thermal imaging monocular is a compact powerhouse for night vision, combining exceptional performance and image quality at an affordable price. Ideal for wildlife observation and tracking, it features a highly sensitive VOx infrared sensor and a vivid HD AMOLED display for sharp thermal imaging.

Highlights:

• Color Modes: Choose from Black Hot, White Hot, Red Hot, Green Hot, Iron Red, Blue Hot, and Sepia for optimal visibility.
• Easy Operation: Intuitive one-button/one-ring design for fast access.
• Quick Charging: A 10-minute charge provides 1 hour of use, operational in just 2 seconds.
• WIFI Connectivity: Real-time image transfer and firmware updates via a mobile app.
• Extended Battery Life: Internal battery offers up to 5 hours of use with 20W fast charging.

Technical Specifications:

• Sensor Resolution: 400 x 300 pixels (VOx detector)
• Pixel Pitch: 12 μm
• Sensitivity (NETD): ≤ 25 mK
• Frame Rate: 50 Hz
• Display: 800 x 600 pixel AMOLED display
• Optics: 25 mm/F1.0 lens, manual focus
• Magnification: 1.9x optical, 1x–4x digital
• Field of View: 19 x 14 meters at 100 m
• Detection Range: Up to 1300 m
• Dimensions: 155 x 47 x 47 mm
• Weight: 295 g
